Smart Relay Duplex Three Phase (Advanced Squatch)
SAS-SR-D-3PH-1
Regular price$1,925.00
- Available to ship same or next business day
- Free shipping on orders over $50 in The US*
- Add your shipping tag or purchase order # to the Order Notes

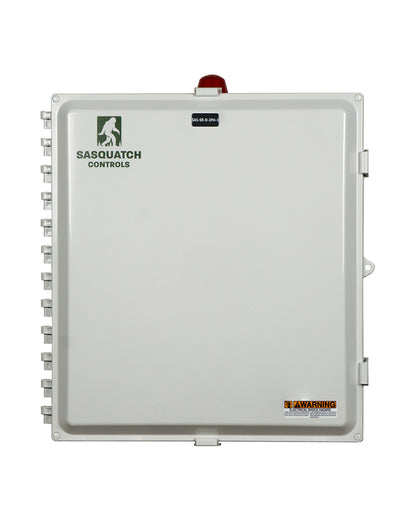

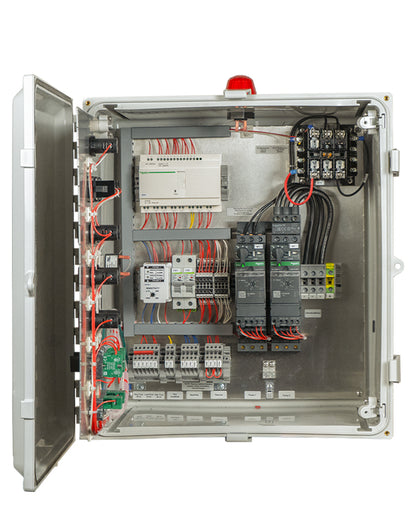

The Sasquatch SAS-SR-D-3PH is a three phase control panel designed for use with two pumps, rated for 208/240/480 VAC up to 32 FLA. Standard features include: NEMA 4X enclosure, duplex pump alternation, branch circuit protection, adjustable overload(s), seal fail detection, elapsed time meters, alarm buzzer, 360-degree red beacon alarm light, and three mechanical floats. This control panel is UL listed and comes standard with two-year limited warranty.
Features
- NEMA 4X enclosure: 18”x 16”x 10”
- 208/240/480V, three phase, 1.25-32.0 FLA
- Zelio smart relay
- Automatic alternation for duplex operation
- Motor protective switch for each pump: Branch circuit protection, adjustable overload, and disconnect
- Panel sized up to 32 FLA with easy-to-swap overloads
- Control circuit breaker
- Multi-tap transformer for easy panel configuration
- Pump hand-off-auto toggle switch for each pump
- Pump run lights
- Pump fault lights
- Seal fail detection lights
- Alarm test and silence button
- Elapsed time meters
- 360-degree red beacon alarm light
- Alarm buzzer 85 decibels at 10’

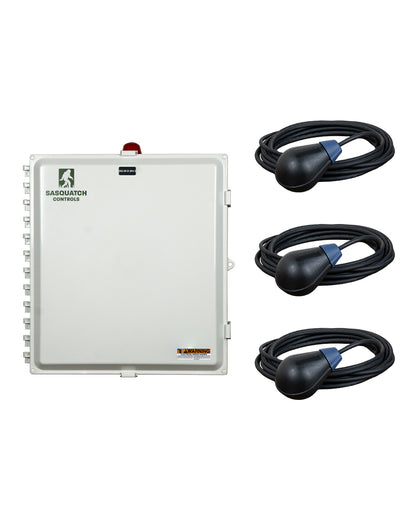

- Includes three normally open mechanical floats with 20’ leads
- UL listed with two-year limited warranty
Applications
- Sewage pump chambers
- Grinder pumps
- Sump pump basins
- Lift stations
