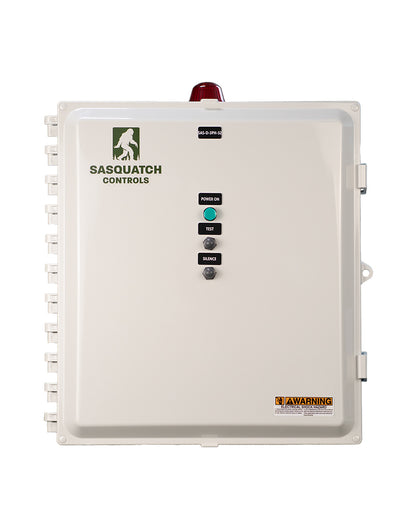

Front view of a closed Sasquatch Controls Three Phase Duplex Control Panel.

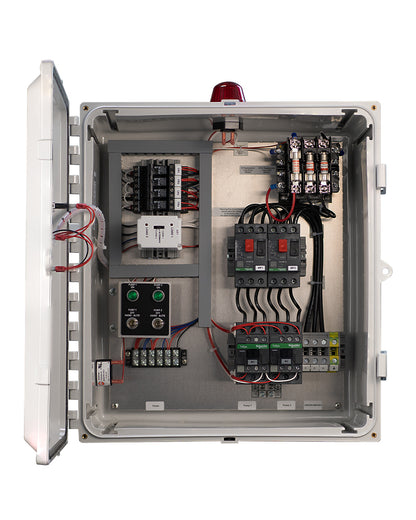

Inside view of Sasquatch Controls Three Phase Duplex control panel.
Green '2 Year Limited Warranty' and 'UL Listed' labels on a white background.

Three Phase Duplex Pump Control Panel, 208/240/480V, NEMA 4X, UL Listed

SAS-D-3PH-06

$1,559.25

Choose FLA Range Below

The Sasquatch SAS-D-3PH is a three phase control panel designed for use with two pumps, rated for 208/240/480 VAC up to 32.0 FLA. Standard features include: NEMA 4X enclosure, motor and control circuit breaker(s), pump run light(s), alarm buzzer, 360-degree red beacon alarm light, and three mechanical floats. This control panel is UL listed and comes standard with a two-year limited warranty.

Features

  • NEMA 4X enclosure: 16”x 14”x 8”
  • 208/240/480V, three phase, 1.0-32.0 FLA
  • Automatic alternating relay for duplex operation
  • Motor protective switch for each pump: Branch circuit protection and adjustable overload
  • Control circuit breaker
  • Multi-tap transformer for easy panel configuration
  • Pump hand-off-auto toggle switch for each pump
  • Pump run lights
  • Alarm test and silence button
  • 360-degree red beacon alarm light
  • Alarm buzzer 85 decibels at 10’
  • Includes three normally open mechanical floats with 20’ leads
  • UL listed with two-year limited warranty
APPLICATIONS
  • Sewage pump chambers
  • Grinder pumps
  • Sump pump basins
  • Lift stations
LITERATURE
In stock

Pickup available at Sasquatch - Riverside, California

Usually ready in 24 hours
