Name: SINGLE PHASE SIMPLEX: SAS-S-1PH
Brand: Sasquatch Controls
SKU: SAS-S-1PH-10
Price: 590.0 USD
Availability: InStock

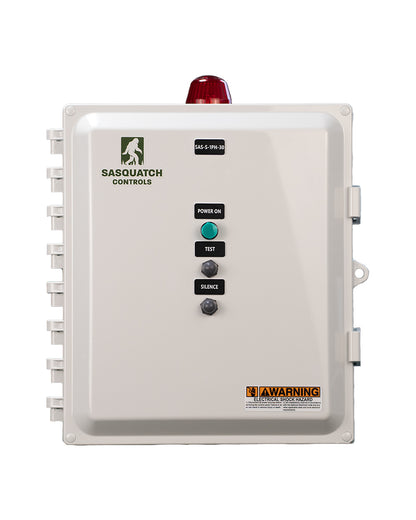

Single Phase Simplex Control Panel - Front View

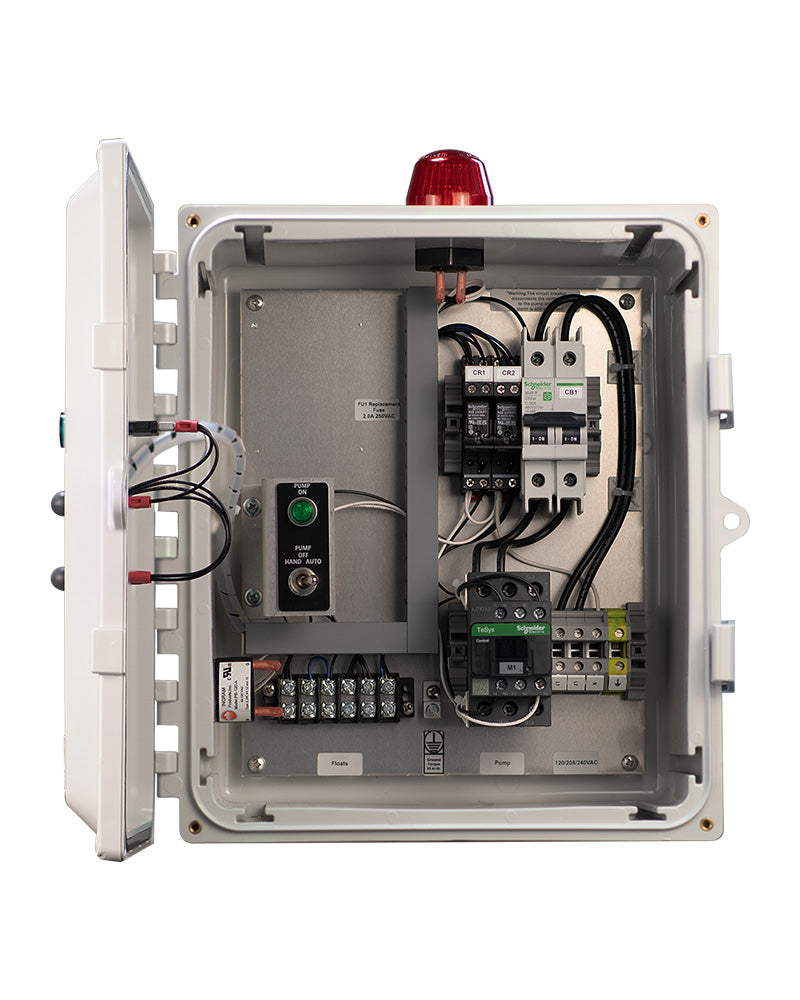

Single Phase Simplex Control Panel - Inside View

$590.00

Available to ship same or next business day

Free shipping on orders over $50 in The US*

Add your shipping tag or purchase order # to the Order Notes

The Sasquatch SAS-S-1PH is a single phase control panel designed for use with one pump, rated for 120/208/240 VAC up to 25.0 FLA. Standard features include: NEMA 4X enclosure, motor and control circuit breaker, pump run light, alarm buzzer, 360-degree red beacon alarm light, and three mechanical floats. This control panel is UL listed and comes standard with a two-year limited warranty.

Features

NEMA 4X enclosure: 12”x 10”x 6”
120/208/240V, single phase, 0.0-25.0 FLA
Motor circuit breaker
Motor contactor
Control circuit breaker
Pump hand-off-auto toggle switch
Pump run light
Alarm test and silence button
360-degree red beacon alarm light
Alarm buzzer sounds 85 decibels at 10’
Includes three normally open mechanical floats with 20’ leads
UL listed with two-year limited warranty

Applications

Sewage pump chambers
Grinder pumps
Sump pump basins
Lift stations
