Name: SINGLE PHASE DUPLEX: SAS-D-1PH
Brand: Sasquatch Controls
SKU: SAS-D-1PH-10
Price: 925.0 USD
Availability: InStock

Single Phase Duplex Control Panel - Front View

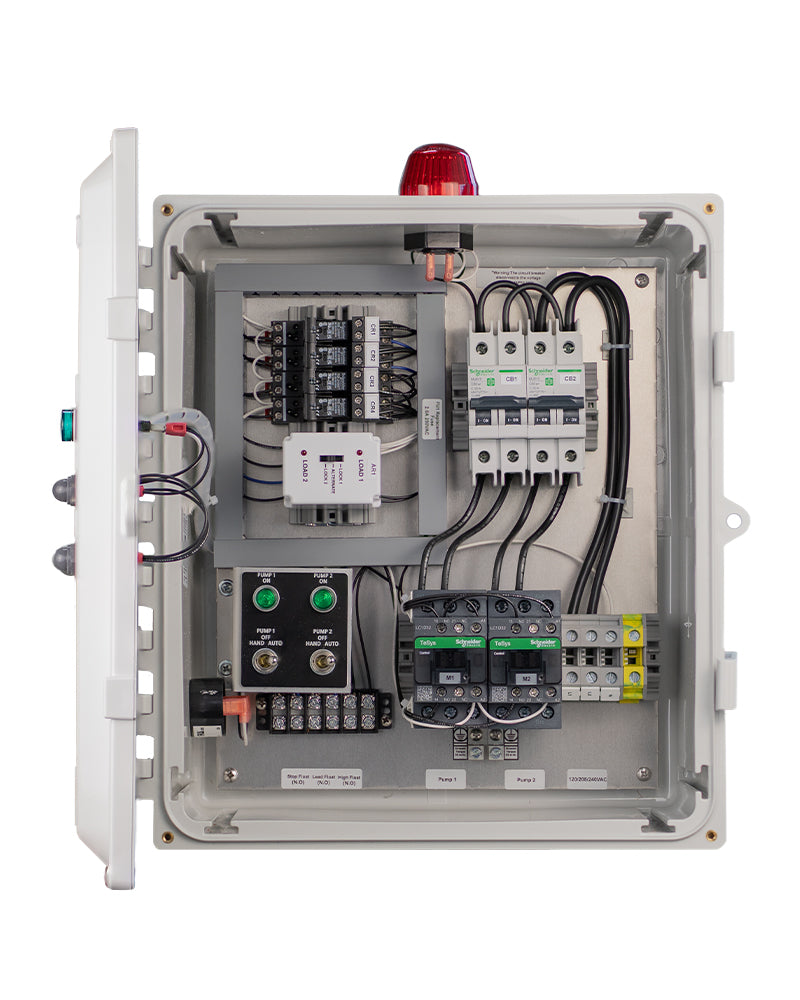

Single Phase Duplex Control Panel - Inside View

$925.00

Available to ship same or next business day

Free shipping on orders over $50 in The US*

Add your shipping tag or purchase order # to the Order Notes

The Sasquatch SAS-D-1PH is a single phase control panel designed for use with two pumps, rated for 120/208/240 VAC up to 25.0 FLA. Standard features include: NEMA 4X enclosure, motor and control circuit breaker(s), pump run light(s), alarm buzzer, 360-degree red alarm beacon light, and three mechanical floats. This control panel is UL listed and comes standard with a two-year limited warranty.

Features

NEMA 4X enclosure: 14”x 12”x 6”
120/208/240V, single phase, 0.0-25.0 FLA
Automatic alternating relay for duplex operation
Motor circuit breakers
Motor contactors
Control circuit breaker
Pump hand-off-auto toggle switch for each pump
Pump run lights
Alarm test and silence buttons
360-degree red beacon alarm light
Alarm buzzer 85 decibels at 10’

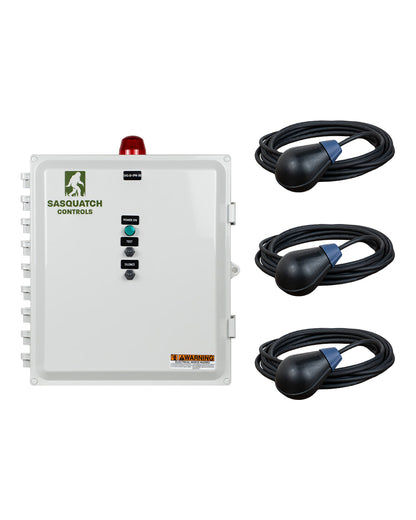

Includes three normally open mechanical floats with 20’ leads
UL listed with two-year warranty

Applications

Sewage pump chambers
Grinder pumps
Sump pump basins
Lift stations

Literature

2 Year Warranty + UL Listed Logos

We offer free domestic shipping!*

Our default shipping method is ground. Should you need to request expedited or international shipping, please contact us at sales@sasquatchcontrols.com.

*Exceptions apply to Hawaii and Alaska.
