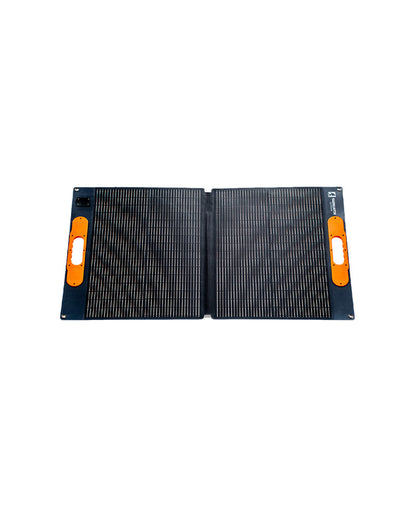

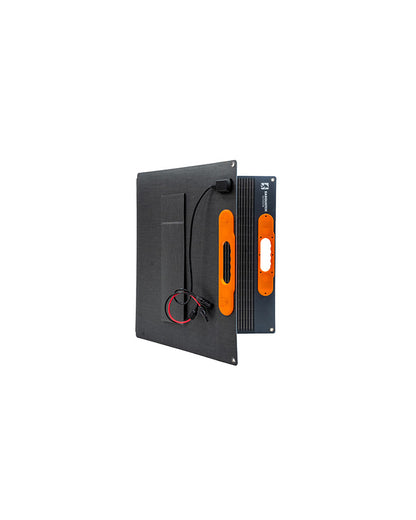

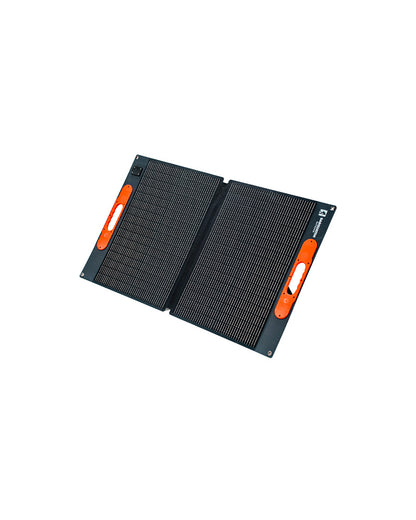

Sasquatch 100W Portable Solar Panel: SAS-SOLAR-100F

The Sasquatch 100W Portable Solar Panel is a compact folding solar panel with a maximum output of 100W, 19.8V, and 5.05A. The 100-F comes equipped with MC4 connectors, allowing it to be compatible with all Sasquatch Outdoor power stations, as well as various other brands, and can even be connected in series or in parallel with multiple panels. With an IP67 outdoor rating, the solar panel is waterproof and protected against dust and dirt.

Features

• Adjustable angle
• Compact & lightweight
• Can be wired in series or in parallel
• Compatible with various power station brands
• IP67 waterproof rating
• Quick set up and tear down
• Mounting holes for mounting and installation flexibility

Literature

Instruction Manual (PDF)

Specifications

General

• Dimensions (Folded): 21.2 x 25.8 x 2.5in (538 x 655 x 63mm)
• Dimensions (Unfolded): 42.6 x 25.8 x 1.4in (1082 x 655 x 35mm)
• Product Weight: 10.1lbs (4.56kg)
• Operating Temperature Limits: -40°~185°F (-40°~80°C)
• Connector Type: MC4

Electrical Parameters

• Maximum Power: 100W
• Solar Cell Efficiency: 23%
• Maximum Power Voltage: 19.8V
• Open Circuit Voltage: 23.7V
• Maximum Power Current: 5.05A
• Short Circuit Current: 5.33A
